240W Bextreme Shell BLDC Water Pump With PWM Signal Speed
Controlling For Liquid Cooled Industry cooling Equipment and Energy
Storage Equipment etc.
This electronic water pump with compact structure,small size,easy
installation and high efficiency, is single-stage centrifugal water
pumps.The body of the water pump is constructed of high quality
die-cast aluminum alloy.BLDC motor inside allows our pumps operate
continuously without maintenance and is trusted by our customers
for its nice quality long service life and low maintenance
cost.Bextreme Shell OWP-BL43-408T SERIES with PWM speed control.Get technical data please click here
Bextreme Shell OWP-BL43-408T SERIES brushless DC water pump
Boosting/circulation/Variable-frequency/Low-noise/centrifugal pump
PWM control/Fault diagnosis
■ Selling points
- Diagnostic signal output
- With constant flow controlling
- Reverse polarity protection
- Dry running protection
- Over Voltage, over current protection
- Overload, over temperature protection
- Centrifugal pump
- Magnetic force transmission
- High efficiency brushless DC motor, low power consumption, high
efficiency, long service life.
- With wide range operating temperature
- PWM signal speed controlling
■Technical description (related parts in contact with the liquid)
Pump head housing: Die casting aluminum alloys
Impeller: PPS+GF
Shield cavity: PPS+GF
Shaft sleeve: carborundum composite materials
Shaft: stainless steel(3CR14) shaft
Magnet housing: PPS plastic capsulation
Seal ring: EPDM
EMC: Grade 3
Noise:≤61dB
■Driving device
Driving rotor: PPS plastic capsulated magnet
Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless DC motor
Motor wire frame :PPA GF
Pump housing: Die-casting aluminum case with sandblasting and
anodizing +PE powder coating..
Bracket: steel
Bracket hoop: US 304 stainless steel
Waterproof based on IP68 rating (en60529)
Connector model: AMP282106-1 (matched Plug AMP282088-1)
Nozzle diameter:38mm (1.5 inch)
■Electrical parameter
Working Voltage (VDC) | Rated power (W) | Rated flow (L/H) | Dimensions (mm) | Weight (g) |
18V-32V(24V) |
240W | Q=2400L/H, H=17m |
185*90*155 |
2200g |
Connector model and the corresponding electrical properties(as
shown below)
AMP282106-1 (matched Plug AMP282088-1) | 1( Black) | 2( Yellow) | 3(Blue) | 4(Red) |
GND | Fault feedback |
PWM |
+24V |
■PWM character
| Duty Cycle | Description | Remark: 1:PWM duty cycle metrical error ±2% 2:PWM voltage:24VDC, frequency:50-1000Hz 3: Recommended PWM
frequency:500Hz 4: Recommended 0% duty as PWM disconnect |
| 0%≤duty≤10% | PWM mode (stop) |
| 10%≤duty≤55% | PWM mode (Min speed) |
| 56%≤duty≤90% | PWM mode (Linear speed control range) |
| 90%≤duty≤100% | PWM mode (max speed limit) |
Recommended Wire size is (Based on 3% voltage drop)
* The length of the wire means the distance from pump to the
battery
| Wire dia. | The longest wire used * |
| 24V |
| 1.5 mm² | 16m |
| 2.5 mm² | 25m |
| 3 mm² | 31m |
| 4 mm² | 40m |

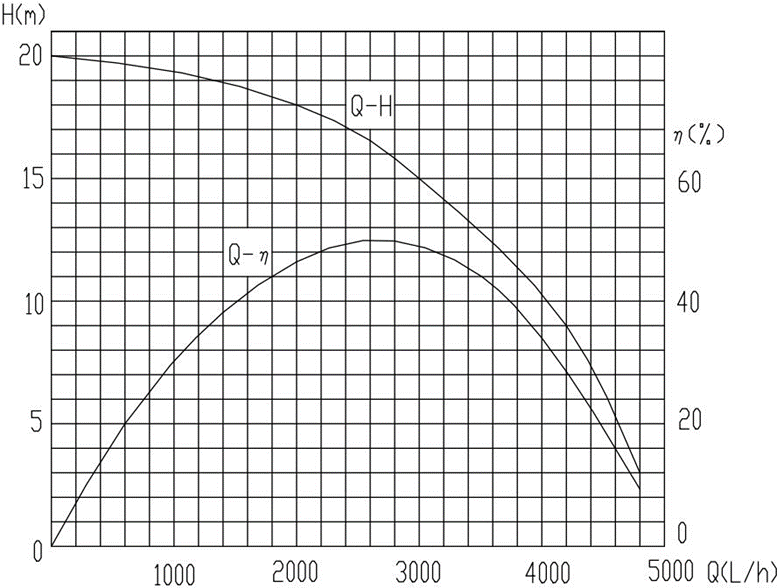

■Performance parameter
■ Temperature parameter
Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature: -40℃ to +120℃ (-40°F to +248°F)
Storage temperature: -40℃ to +70℃ (-40°F to +158°F)
(up to 100 ℃, but it will shorten the service life)
Medium liquid: liquid mixture (Water with below 60% glycol)
■ Voltage range
Rated DC24V water pump, workable range 18V - 32V
Although the motor can be used in a wide range of voltage and
temperature, but excessive or too low voltage and temperature will
affect the service life of the BLDC motor, the pump can not be
exposed to thermal radiation ambient.
■ External dimension
■ Mounting instruction
OWP-BL43-408T series pumps are centrifugal pumps which require
pre-filled,
The pump installed in the lowest position of the system to ensure
that the impeller is always immersed in the liquid, or pre-filled
the pump before power on .
1:This electric water Pump should not be dry-running, even though
it can dry-running for 15 minutes (after 15 minutes dry-running, it
will automatically stop), Dry running will makes noise, also
increasing abrasion to the shaft and shaft sleeve.
2:Use the recommended diameter pipe connecting the pump inlet, if
you use a smaller diameter hose pump inlet, Due to the negative
pressure in the pump, the outside air easier enter to the pump
through the pipeline, it will make the pump performance
degradation, and also the air bubbles make damage to the pump.
3: As viewed from the pump inlet direction, the impeller rotates
clockwise (see the arrow on the outlet port).
4: The pump can be installed vertically or horizontally mounted
(see figure 1 ) When installed vertically, the outlet port should
be upward .
5:In order to avoid the dry- running (air get stuck in
impeller),the water pump outlet port should be vertical or in the
upper of the impeller. (see figure 1 )

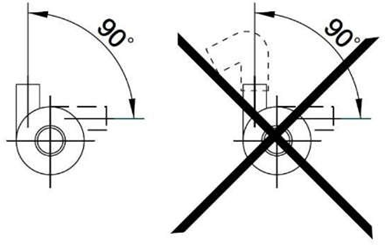

6: The connected pipe should be vertically mounted (or no elbow in
20cm )to make the air discharged easily, the outlet pipe should not
be used less than 90 degrees elbow (see figure 2).
7: Can't use the seawater or other heavy pollution with big grain
impurity liquid as the liquid medium .
Figure 1 Figure 2
Applications
Widely used in hybrid bus, hybrid passenger car, electric vehicles,
trains, ships and other heating and cooling circulation system.
